The need for fast access to remote sensing data is essential for national security and disaster relief. A relay system in MEO provides continuous, real-time connectivity.
The following article is taken from the October issues of Milsat Magazine at:
See article in Milsat Magazine here.
Getting remote sensing data to the tactical edge at the speed of relevance is essential to support both military operations and disaster relief. Today, however, access time to retrieve satellite data is often measured in hours or even days. A high bandwidth relay system with real-time continuous tasking uplink and data downlink can solve this problem and provide access to critical data in minutes to seconds, rather than hours.
Remote sensing satellites in LEO today can only download data or upload tasking commands when over a ground station. Typically, this is limited to six percent or less of each orbit. Ground station locations are limited by oceans, mountains and unfriendly territories, and combined with limited data throughput and gaps between passes, the real-time intelligence needed to make tactical decisions is often unavailable. An on-orbit relay system eliminates these obstacles by providing a network that is always in sight of its ground stations and assets in LEO, MEO, or GEO, as well as airborne platforms. It can provide immediate connectivity as needed as well as continuous and persistent links.
There is an unprecedented proliferation of commercial remote sensing satellites in LEO, collecting EO, SAR, RF and hyperspectral data. New systems are needed to maximize the value of the massive amounts of data these constellations collect. Advances in transport, analysis and integration are transforming the amount of useful information available and government agencies are looking to benefit from the data that industry can provide.
This proliferation is driving demand for new data relay services and technology advances are making it possible to eliminate the lag in communications with space-based platforms. Developing a standard for optical intersatellite links (OISLs) and technologies such as onboard processing with the intelligence to control and direct data traffic to optimize the capacity and availability of the network are contributing to new solutions that meet the need for speed challenge. Secure commercial relay networks are poised to provide alternative space communications pathways that ensure resiliency and reduce sensor-to-shooter latency.
NASA’s plans to phase out its Tracking and Data Relay Satellite (TDRS) system, which now provides communications links for both NASA and national security spacecraft in orbit, is also changing the landscape for commercial solutions.
According to NASA:
Private sector innovation in near-Earth space is accelerating quickly and dramatically. Tapping those advances will ensure NASA missions have the reliable, secure and continual space communications on which their long-term operations depend. That is needed as the legacy NASA owned and operated Tracking and Data Relay Satellite system is decommissioned in coming years.
Satellite Relay Solutions
Today’s tactical military operators need high-capacity communications links to benefit from the growing pool of remote sensing data now available. They need a system that easily connects to gateways in the continental U.S. or directly to deployed ground terminals, when and where there is demand, without delays. This kind of access has the potential to significantly reduce risk to adversary threats to foreign ground stations and data processing nodes in combat and can make the concept of a hybrid architecture combining government satellites and commercial satellites a reality.

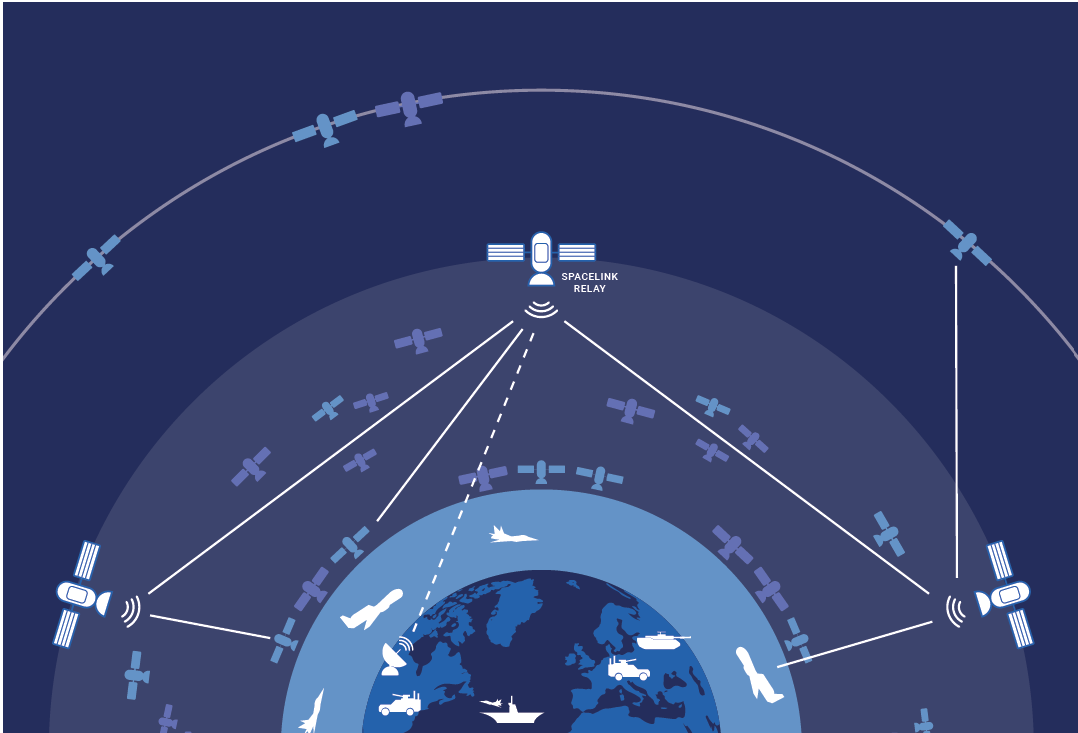

SpaceLink is building a MEO constellation of high bandwidth optical and RF relay satellites designed to provide secure, real-time data transport between on-orbit assets and the ground. This continuous link availability transforms the benefit of remote sensing data collected. With optical inter-satellite links and high bandwidth V/Q-band communications to the ground, gigabit per second throughput of real-time data is possible. SpaceLink has designed an innovative system architecture, implementing services that provide high security and 100 percent access time so that data is available in seconds when it matters the most.
The SpaceLink relay constellation consists of four satellites equally spaced in an equatorial orbit. Scheduled to launch in late 2024 or early 2025, its features include:
- 100 percent line-of-sight for fast access to remote sensing data, eliminating delays between the collection of remote sensing data and the delivery of the data to the end user
- Customer-driven real-time tasking and direct downlink of mission critical data
- An option for on-board processing to support real-time, same orbit tip-and-cue between multiple and diverse remote sensing satellites (e.g., RF to SAR to EO visible)
- An ability to augment proliferated LEO communications satellites providing a resilient ‘fail-over’ capability for government communications paths during periods of pre-planned or adversary-caused loss of communications.
SpaceLink’s initial four satellite constellation provides 26 Gigabits per second (Gbps) of raw data transfer capacity with latencies as little as 150 milliseconds from reception to delivery. Using SDA compatible optical terminals, the constellation is designed to aggregate data from multiple sources and deliver that data using secure cloud-based networks. It will handle scheduled, ad-hoc, and urgent requests with service level agreements defining priorities. The cost is a fraction of the cost of deploying or renting a traditional ground station network and connectivity and security are dramatically improved.
SpaceLink relay satellites link to its U.S. based gateways using the Q and V bands. From there the SpaceLink network operation center interconnects with top tier cloud providers, including AWS and Microsoft Azure for secure and reliable data delivery to end users. Because of its four-satellite architecture, data can be instantly and securely passed over optical links to the node closest to its U.S. access zones. Initially, the SpaceLink ground network has one access zone with two gateway sites each hosting a 10-meter multi-band antenna system. 99.9% availability is achieved by separating these gateway antennas by 100 km or more to mitigate weather-related interference.
Advances in optical communications, also known as laser communications, bring significant benefit to in-space relay systems. Using optical intersatellite links provides an order of magnitude increase in data capacity and transport speed compared to RF networks. This is essential when working with datasets such as large quantities of high-resolution imagery. The Space Development Agency (SDA) has developed interoperability standards so that companies such as Mynaric and Blue Marble Communications can ramp up production and developments for commercial use.
The result is that what was once a cost-prohibitive technology is now becoming affordable for commercial industry. Previously satellites were limited to using RF for communications, which is constrained by spectrum availability, capacity, and a broadly dispersed signal which is vulnerable to interference. RF equipment is also larger, heavier, and uses more power than optical terminals and it requires large antennas that need to be stowed for launch.
Optical terminals are compact with lower mass and smaller footprints, which is important to satellite operators who need to maximize the cost effectiveness of their spacecraft. Optical intersatellite links offer the added benefit of an inherent level of security compared to RF signals. Because the laser beams are very small and concentrated, they are much more difficult to intercept, and are much less susceptible to jamming or interference than RF signals are.
When SpaceLink launches its first constellation of relay satellites, with sixteen optical terminals in all, it will be capable of transporting a data volume of 26 Gigabits per second. Just like on the ground, the amount of data required to satisfy demand only continues to grow. The SpaceLink technology roadmap is building toward a 10 Terabit per second orbiting optical cloud that will serve users in every orbit including around the moon.
Fast access to remote sensing data is essential to reap the benefits of the proliferation of commercial Earth observation satellites in LEO. Now is the time to implement better and faster methods of downloading and integrating the wealth of EO, SAR, RF and hyperspectral data becoming available. Increased cadence and proliferated ground infrastructure are at best only a partial solution. An optical relay network in MEO eliminates bottlenecks, reducing sensor to shooter timelines to seconds. The SpaceLink network is designed to support real-time tasking and downlink of data needed for military operators to make tactical decisions, when seconds matter the most.
